Auto Chemistry Analyzer dapat digunakan untuk menganalisa zat-zat kimia organik yang terlarut dalam darah, urin dan cairan tubuh. Pemeriksaan laboratorium tersebut berdasarkan pada reaksi kimia. Chemistry Analyzer dapat digunakan di Rumah sakit, Puskesmas, Universitas, Laboratorium.
Beberapa diantara anda mungkin belum mendapatkan informasi yang cukup mengenai Biosafety Cabinet maupun alat laboratorium lainnya yang sesuai.
Kami akan dengan senang hati menjawab setiap pertanyaan yang Anda miliki. Jika Anda memiliki pertanyaan, silahkan untuk menghubungi kami 081284248904.
1. 400 tes perjam.
2. Posisi reagen 90.
3. Mangkok Reaksi 120.
4, Sistem sampel barcode bawaan.
5. 60 Posisi sampel (pilihan lainnya dapat mencapai 90 posisi sampel).
6. Dengan fungsi anti-tabrakan, fungsi deteksi tingkat cairan.
Spesifikasi lainnya :
1. Terdapat satu jarum pemindai untuk reagen dan sampel dan satu mixer untuk membersihkan jarum pemindai.
2. Pampan reaksi : 37 ℃ ± 0,1 ℃, sesuai monitor waktu.
3. Penampan reagen : Pendinginan 2~8 ℃ selama 24 jam.
4. Pemutar jarum pemindai : Lapisan teflon untuk menghindari kontaminasi silang.
5. Jarum sampel : Fungsi sensor level cair. Fungsi anti-tabrakan. Volume reagen deteksi sesuai waktu.
6. Pembersih jarum pemindai : Sistem pencucian 7 langkah yang independen.
7. Menggunakan perangkat lunak.
|
Model |
BK-400 |
|
|
Overall Performance |
Throughput |
400 Test/hour |
|
Analysis Method |
End-point, Fixed-time, Rate(Kinetic), Turbidimetry |
|
|
Certification |

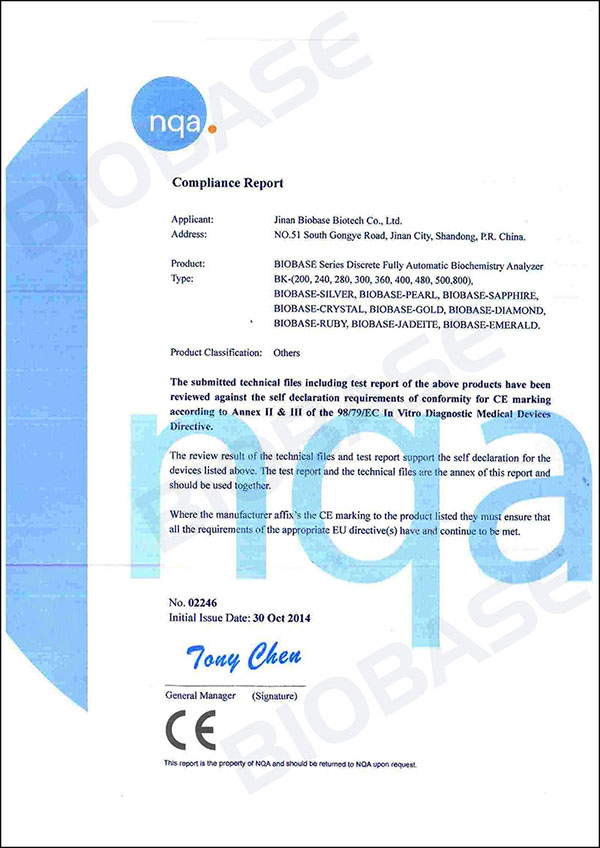

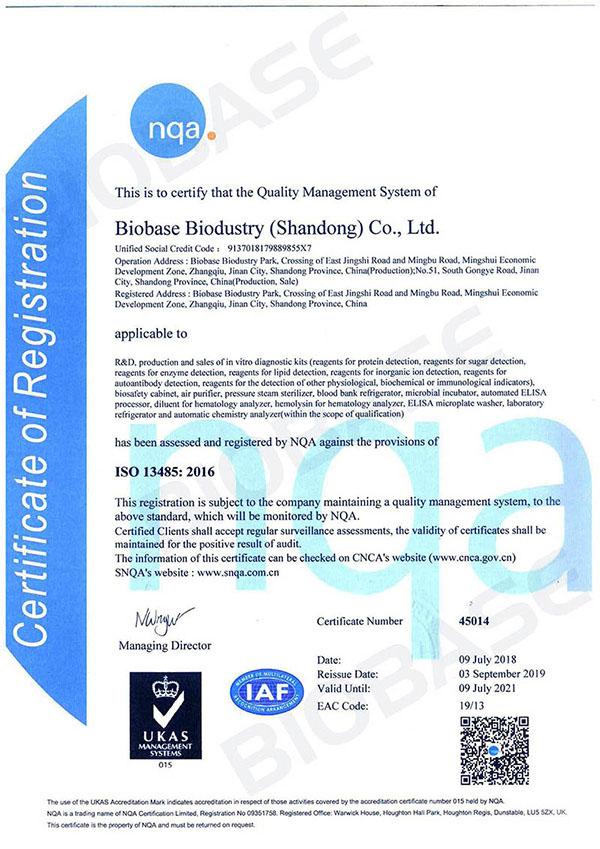

CE, FDA, ISO9001, ISO14001, ISO13485 |
|
|
Sample & Reagent System |
Sample Positions |
60 or 90 sample positions, built-in barcode system available |
|
Reagent Positions |
45 refrigerated reagent positions |
|
|
Sample Volume |
2~70μl |
|
|
Reagent Volume |
20~350μl |
|
|
Probe |
Teflon coating ,with anti-collision function, liquid leveldetection function |
|
|
Probe Washing |
Automatic washing interior and exterior |
|
|
Reagent Cooling |
Refrigerated tray with independent switch |
|
|
Reaction System |
Temperature Control |
37±0.1℃, real-time monitoring |
|
Cuvettes |
120reusable cuvettes, optical length 6mm |
|
|
Mixer Probe |
Independent stirring |
|
|
Washing |
Automatic cuvettes washing |
|
|
STAT function |
YES |
|
|
Optical System |
Light Source |
12V/30W halogen-tungsten lamp |
|
Spectrophotometry |
Post-spectral spectrophotometry |
|
|
Wavelength |
340,405,450,510,546,578,630,700nm |
|
|
Absorbance |
0~3.0Abs |
|
|
Calibration & QC |
Calibration |
Linear:K factor, 1-point ,2-point and multipoint linear Non-Linear:Spline,Polygon, Index, Ogarithm, Logit-4P, Logit-5P |
|
Quality Control |
Real-time QC, Westgard multi rule, Cumulative Sum Check,Twin Plot(2D) |
|
|
Data Management |
Software |
Windows 7/8/10 , 32or 64bit |
|
LIS System |
Bi-direction,support HL7 protocol |
|
|
Interface |
LAN port access |
|
|
Printer |
External,multiple reporting mode available |
|
|
Working Conditions |
Power Supply |
AC220V±10%,50/60Hz, 110V±10%,60Hz, 300W |
|
Temperature |
10～30℃ |
|
|
Water Consumption |
Deionized water:12L/H |
|
|
Humidity |
30-80% |
|
|
Size & Weight |
External Size (W*D*H) |
1167*780*1016mm |
|
Net Weight |
193kg |
|
|
Package Size (W*D*H) |
1348*928*1399mm |
|
|
Gross Weight |
267kg |
|
