Auto Chemistry Analyzer dapat digunakan untuk menganalisa zat-zat kimia organik yang terlarut dalam darah, urin dan cairan tubuh. Pemeriksaan laboratorium tersebut berdasarkan pada reaksi kimia. Chemistry Analyzer dapat digunakan di Rumah sakit, Puskesmas, Universitas, Laboratorium.
Beberapa diantara anda mungkin belum mendapatkan informasi yang cukup mengenai Biosafety Cabinet maupun alat laboratorium lainnya yang sesuai.
Kami akan dengan senang hati menjawab setiap pertanyaan yang Anda miliki. Jika Anda memiliki pertanyaan, silahkan untuk menghubungi kami 081284248904.
1. 550 Tes perjam.
2. Mangkok Reaksi 120.
3. 180 posisi reagen yang didinginkan.
4. Sistem sampel barcode bawaan.
5. 90 Posisi sampel (pilihan lainnya dapat mencapai 120 posisi sampel).
6. Dengan fungsi anti-tabrakan, fungsi deteksi tingkat cairan.
Spesifikasi lainnya :
1. Terdapat satu jarum pemindai untuk reagen dan sampel dan satu mixer untuk membersihkan jarum pemindai.
2. Pampan reaksi : 37 ℃ ± 0,1 ℃, sesuai monitor waktu.
3. Penampan reagen : Pendinginan 2~8 ℃ selama 24 jam.
4. Pemutar jarum pemindai : Lapisan teflon untuk menghindari kontaminasi silang.
5. Jarum sampel : Fungsi sensor level cair. Fungsi anti-tabrakan. Volume reagen deteksi sesuai waktu.
6. Pembersih jarum pemindai : Sistem pencucian 7 langkah yang independen.
7. Menggunakan perangkat lunak.
|
Overall Performance |
Model |
BK-500 |
|
Type |
Random, Discrete, fully automatic |
|
|
Test Speed |
550Tests/Hour |
|
|
Analysis Method |
End-point, Fixed-time, Rate, Two-points, Turbidimetry |
|
|
Certificates |

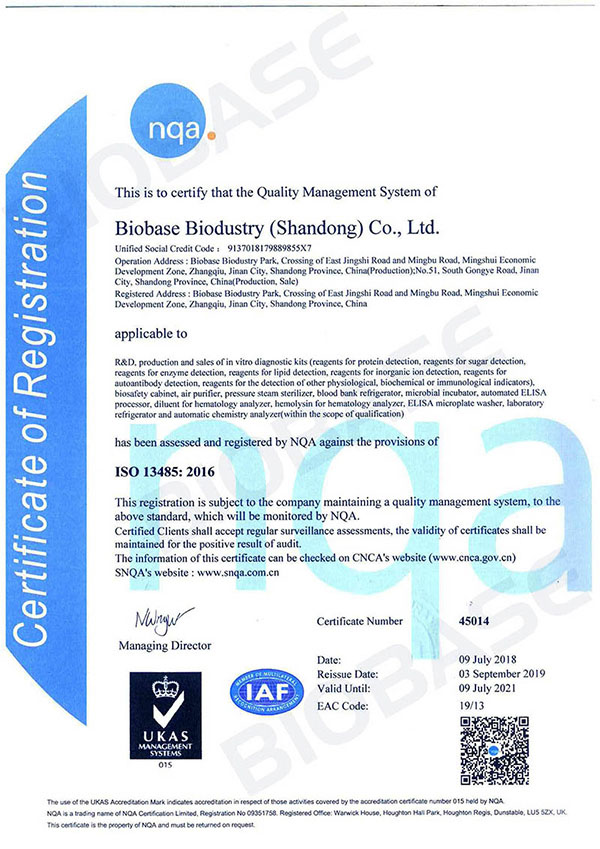

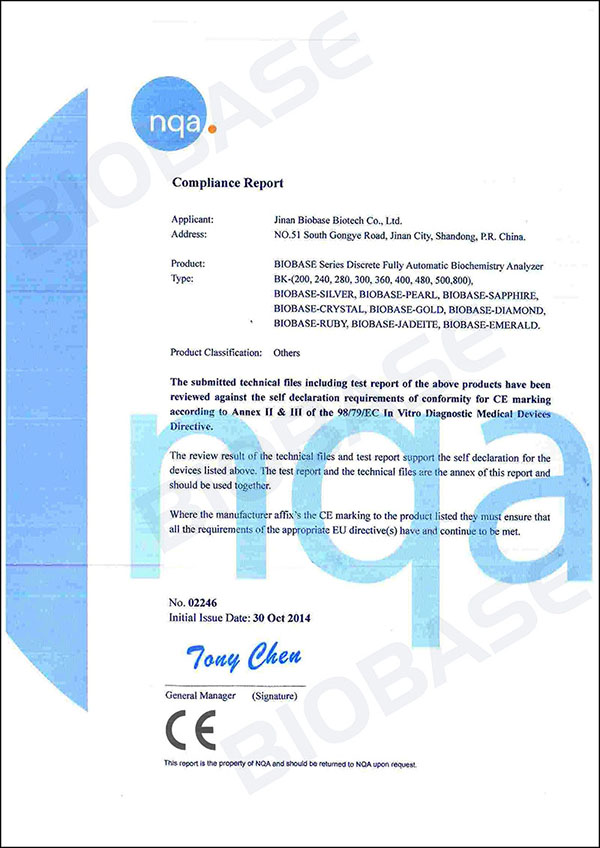

CE, FDA, ISO9001, ISO14001, ISO13485 |
|
|
Sample unit |
Sample Settings |
90 sample positions, including calibration, quality control and emergency |
|
Sample Volume |
2ul ~70ul (0.1ul stepping) |
|
|
Sample Probe |
Liquid level detection function |
|
|
Probe Washing |
Automatically wash interior and exterior |
|
|
Analysis Items |
Analyzing maximally 45 items at the same time |
|
|
Reagent unit |
Reagent Position |
R1: 45, R2: 45, total 90 refrigerated reagent positions |
|
Reagent Volume |
20~350μl (1μl stepping) |
|
|
Temperature Control |
2°C~8°C cooling for 24 hours |
|
|
Reagent Probe |
Liquid level sensor function |
|
|
Probe cleaning |
Automatically wash interior and exterior |
|
|
Reaction unit |
Temperature |
37°C±0.1°C, real-time monitor |
|
Cuvettes |
120 reusable reaction cuvettes (optical path length 6mm) |
|
|
Mixer Probe |
After adding reagent and sample, mix immediately |
|
|
Washing |
Automatically cuvettes washing |
|
|
System adjustment |
System can record the blank value and get more, accurate results by deducting blank base value of each cuvette |
|
|
Optical System |
Light Source |
12V/30W halogen-tungsten lamp, 2000 hours lifetime |
|
Receiver |
8 precision photo receivers |
|
|
Wavelength Range |
340, 405, 450, 510, 546, 578, 630, 700mm |
|
|
Linear Range |
0.000~3.000Abs |
|
|
Calibration and QC |
Calibration |
One-point, two-point, multi-point, factor, logit-4P, logit-5P, spline |
|
Quality Control |
Inserting quality control at random |
|
|
Software |
STAT Function |
Emergency samples can be placed in the sample tray at any time |
|
Computer System |
Windows 7/8/10, LIS system available |
|
|
Data Processing |
Reaction curve and data display function |
|
|
Others |
Power Supply |
AC110/220V±10%, 60/50Hz |
|
Consumption |
750w |
|
|
Package Size(W*D*H) |
1348*928*1399mm(Machine) 678*624*548mm(Accessories) |
|
|
Gross weight |
360kg |
